Double Station Manual Plastic Blister Forming Machine ZY-68SP

  • >=1 Units
    $5,999.00
Model Number:
ZY-68SP
Power:
12.5KW
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 2 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Condition:
New
Automatic Grade:
Semi-automatic
Usage:
Plastic Forming Machine
Place of Origin:
Guangdong, China
Brand Name:
ZEUYA
Voltage:
380V/220V
Dimension(L*W*H):
2400*1200*2000MM
Weight:
900KG
Certification:
CE ISO9001
Key Selling Points:
Long Service Life
After-sales Service Provided:
Engineers available to service machinery overseas
Machine Type:
Blister forming machine
Manufacturer:
Yes
OEM:
Accept
Brand:
Zeuya
Model:
ZY-68SP
Function:
Plastic Forming
Operation Way:
Manual
ODM:
Accept
Cetificate:
CE Approved
Warranty:
1 Year
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
Strong Wooden Case
Port
SHENZHEN
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 2 To be negotiated
Machine Details

Advantage:
1. Plastic forming machine for vacuum packing switches to new energy-saving heat tiles which can save at least 20% energy
2. Mitsubishi inverter as a master control system. Material length is accurate to within ± 3mm.
3. By adopting universal mold plate, Plastic forming machine for vacuum packing can save material 15%.


Basic units:
1. Programmable logic control
2. Digital temperature controllers
3. Radiant heater panel heating system
4. Automatic oven drive with deceleration system
5. Manual film clamp frame
6. Automatic cooling blower(s)
7. Automatic positive displacement vacuum system
8. Automatic blow-off system
9. Steel components polyurethane coated
10. Far infrared ray heating system, micro-adjustable temperature control

Main features:
(1)This machine is semi-automatic, pull plastic sheet and move electric furnace are artificial. Other actions are done automatically.

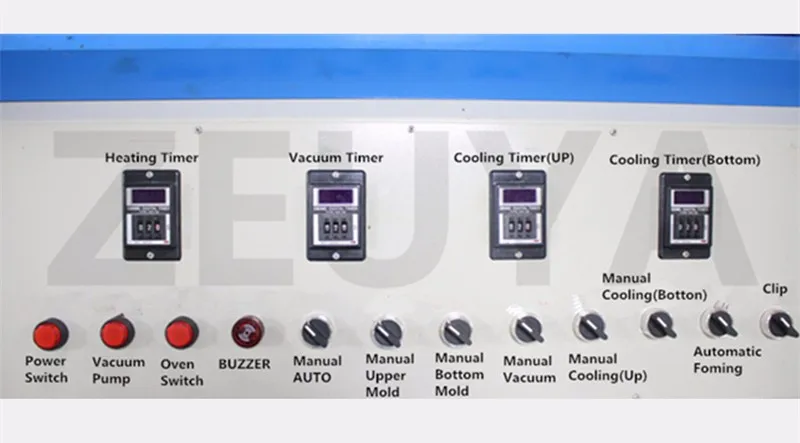

(2)The control board is near the operator, can be operated easily, greatly improve the efficiency of production.
(3)The far-infrared ceramic heating elements can control every single block heater temperature, easy temperature control.
(4)The furnace is guided by bearing and guide pin, can move steady, enhance efficiency and furnace life.
(5)The cooling fan is equipped with a wide mouth and spray device, to improve efficiency and product quality.
(6)This machine can be equipped water spray cooling system if the blister is deep and complex.

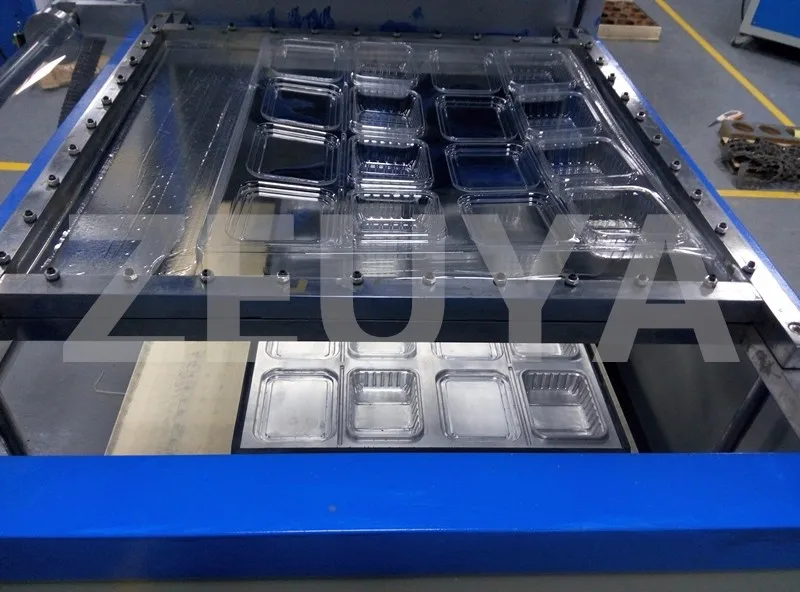

(7)This machine can form all kinds of blisters just replace mould.

Model
ZY-68SP
Power Supply
220V/380V 50/60Hz
Machine Power
12.5KW

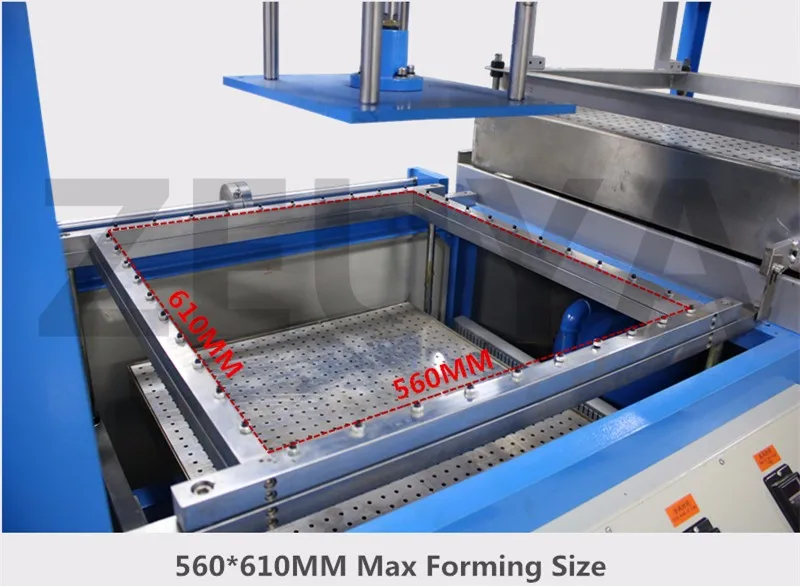

Forming Size
560*610MM
Max Forming Height
200MM
Production Speed
200-300Moulds/H
Thickness of Material
0.2-1.5MM
Machine Dimension
2400*1200*2000MM
Machine Net Weight
900KG
What We Can Form
1. Plastic forming machine for vacuum packing is suitable for materials like PVC,PE, PET,PC,PP,HIPS,APET,PETG,PS, etc.

2. Plastic forming machine for vacuum packing can be used to produce snack box, fruit tray , biscuit box ,toothbrush ,battery , gift, little hardware ,stationary, decorative article , plastic container, pill,etc.

Packing & Delivery

Packing:

Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.

Delivery:

For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.

The price show on our website just the machine EXW price, please contact us before you place order.

Our Company

Shenzhen Zeuya Industry Co., Ltd. has been committed to R&D, production and sales of the plastic welding field ever since its establishment in 1995.

We are professional designer and manufacturer of High Frequency Welding Machine, Ultrasonic Plastic Welding Machine, Blister Forming Machine, Tube Sealing and Filling Machine and other Packing Machine with over 10 years.

We welcome both new and regular customers at home and abroad to visit us and cooperate with us to achieve mutual profits and create a better future. We are convinced that your partnership with us can help your business scale a new high.

Our Certificates

Since its inception, ZEUYA INDUSTRY has been devoted to optimization and integration of developing, producing, sealing, and application of technology of ultrasonic machinery. After almost twenty years of unremitting efforts, ZEUYA INDUSTRY with high quality products, excellent technical support and perfect after-sales service has established a good reputation among the customers, and also gains a number of provincial and national honnors.

FAQ

Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 1-3 days if the goods are not in stock, it is according to quantity.

Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).

Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.


Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.


Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .


Pre-sale services:

1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.

Sale of services:

1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.


2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.

After-sales service:

1. Where to buy our products for 1 years warranty and life long maintenance.


2. 24-hours telephone service.


3. A large stock of components and parts, easily-worn parts.
