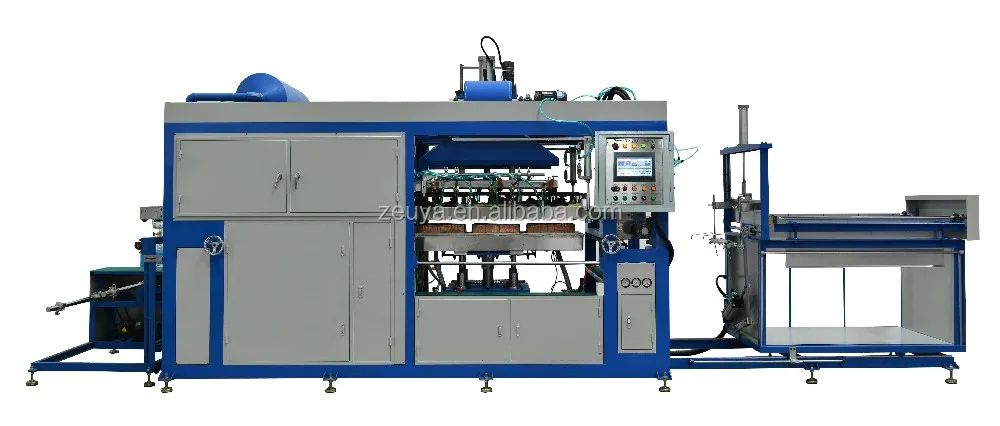

High Speed Automatic Plastic Blister Forming Machine ZY-71S

  • >=1 Units
    $32,999.00
Model Number:
ZY-71S
Power:
12.5KW
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Automatic Grade:
Semi-automatic
Usage:
Plastic Forming Machine
Place of Origin:
Guangdong, China
Brand Name:
ZEUYA
Voltage:
380V/220V
Dimension(L*W*H):
2400*1200*2000MM
Weight:
600KG
Certification:
CE ISO9001
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts
Machine Type:
Blister forming machine
Manufacturer:
Yes
OEM:
Accept
Brand:
Zeuya
Model:
ZY-71S
Function:
Plastic Forming
Operation Way:
Manual
ODM:
Accept
Cetificate:
CE Approved
Supply Ability
Supply Ability:
100 Unit/Units per Month Blister forming machine
Packaging & Delivery
Packaging Details
Strong Wooden Case
Port
Shenzhen/Guangzhou
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Machine Details

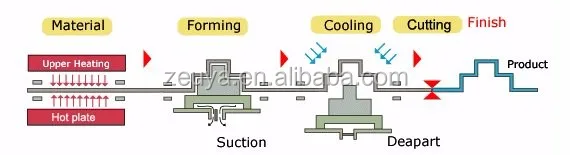

Principles of Vacuum Forming:
The technology of Vacuum Forming is a method for thermo-forming. It is a method of using thermoplastic sheet to make an opening of the housing of the article. Cut the plastic sheet into special size first, and then heat and soften the sheet through the huge pressure difference on both sides of the sheet or mechanical pressure, this can make the sheet attached with the surface of the mold after heating and deforming, next through cooling and shaping, the sheet can be vacuumed into various shapes of cover, plastic trays, bubble shell etc.

The technology of vacuum forming relied on vacuum force which can make the sheet achieve tensile deformation. Vacuum force is easy to be realized, grasped and controlled, so it is the earliest, a thermal forming method ,which is widely used currently.



Main Application:

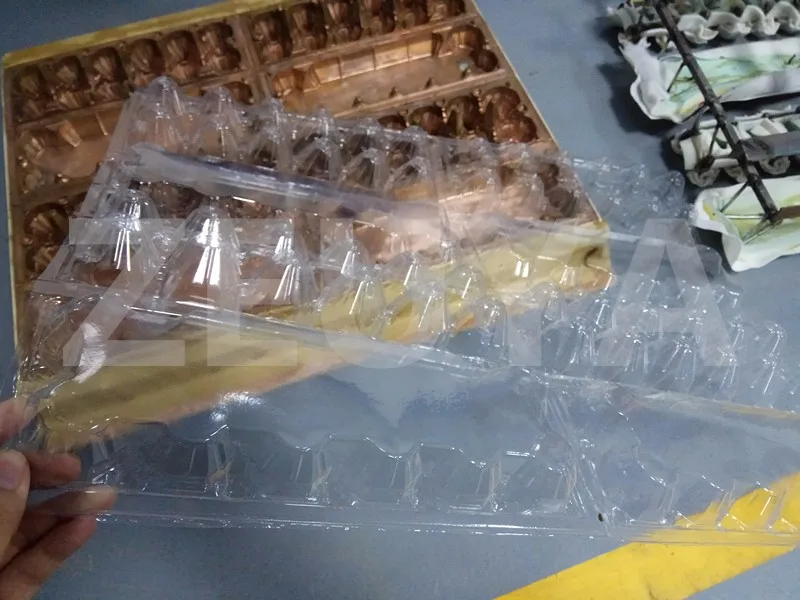

This type machine can be used for plastic film for all kinds, such as toys, hardware, food, electronics, medicine, with a transparent film coating repacked in a board, form a seal packing.

This type machine can also produce plastic ceiling panel, cake boxes, lunch boxes, automobile materials and sanitary materials etc, which can be produced with three-dimensional relief pattern like 3D advertisement products.

Suitable material: PVC, PET, PP, PC, ABS, PS, EPS, HIPS, LDPE, HDPE and all thermoplastic sheet.

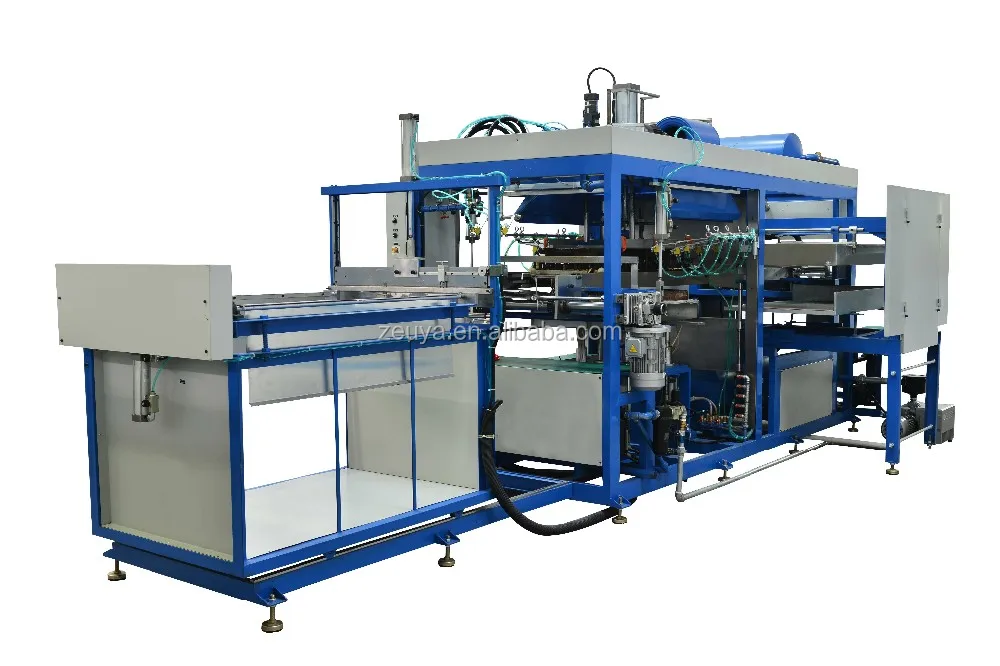

Introduction of Vacuum Forming Machine:
1.This machine is automatic. Just after placing plastic sheet onto the frame, then heating, forming, cooling, can be done automatically.

2.The control board is near the operator, so it can be operated easily, greatly improve the efficiency of production.

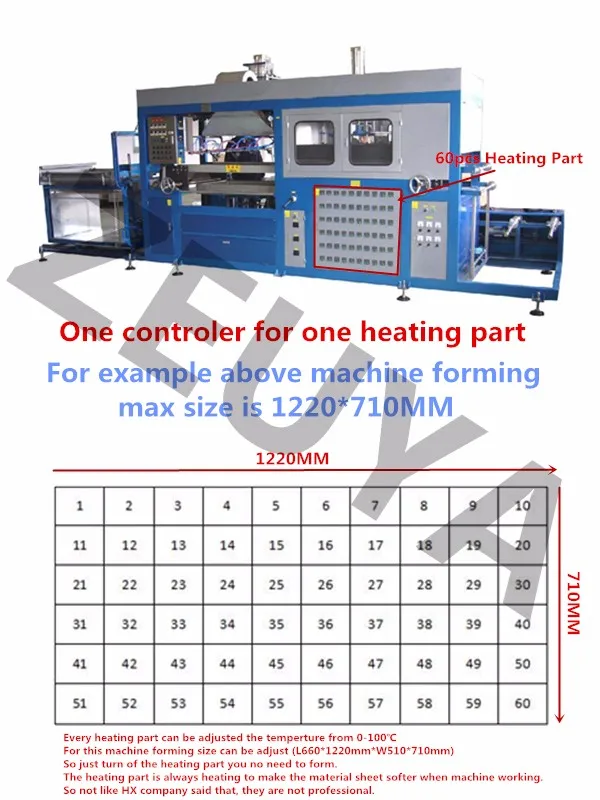

3.The far-infrared ceramic heating elements can control every single block heater temperature, more power-saving features, and reducing production cost.

4.The furnace is guided automatically.

5.The cooling system is independent by cold water.

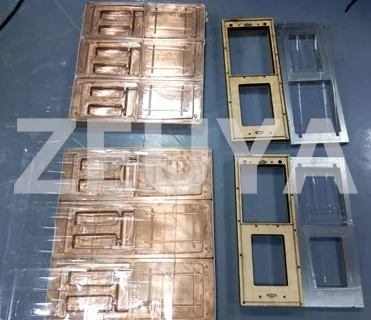

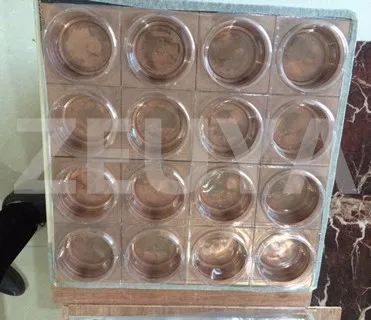

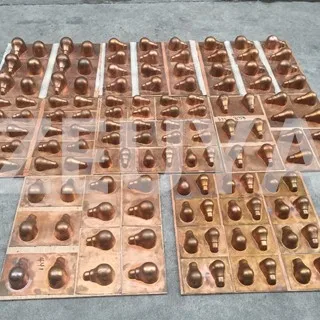

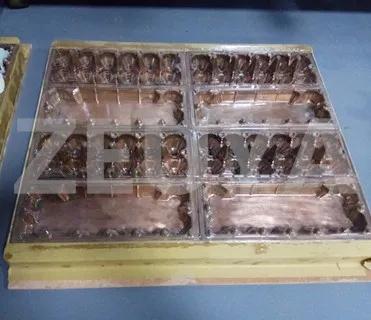

6.This machine can form all kinds of blisters just replace mould.




Working Processes of Vacuum Forming Machine:
Carry materials manually→ clamp the materials → move the material into the oven,(while we can use blow function to keep material not drap down), after the material to soft →take the material to forming area → Bubble blow the material before vacuum (this is important function) → the vacuum will auto start→ open the fan to cold→ separate the model and material →take the material out.





Working Processes of Vacuum Forming Machine:
1. Independent temperature control system: Adopting dense, plate and special far infrared ceramic heating brick to assemble the machine. It can reach exact temperature within 5 minutes. Steady temperature can assure high quality of product when use PVC,PET or other environmental materials. Also, it can save more power that traditional machine, using the time of cooling and demoulding after forming to heat the material , so it will not influence the forming speed.

2. Adopting solid-state temperature controller,which has independent, automatic voltage regulator function, when the external voltage changes in a range, it can ensure the stable temperature.

3. The electric furnace are equipped with cylinder to push, and it has electromagnetic valve buffer system, so this can make the electric furnace stable and durable

4. The machine has complete functions like" delay vacuum, vacuum, vacuum with the wind, Spray, cooling wind", all these can make it convenient and for workers to operate it accurately in actual production, and ensure the perfect vacuum forming process in a best time for high technology products.

5. Equipped with auto spray mold-release agent, the machine has two functions: vibration demould and mold blowing, so this can make it easy for formed sheet to release from the mold

6. Die die blowing function: die into the mold and blowing, make the film formation or summon up, then forming a more perfect product.

7. Precise positioning function of clip, ensure the material placed at the exact position

8. The cooing fan is controlled by inverter, volume of the wind can be adjusted easily.

9. Quick die change function (Automatic Locking); Intelligent temperature control system, servo mechanical transmission system, imported electrical control system , etc.

What We Can Form
1. Plastic forming machine for vacuum packing is suitable for materials like PVC,PE, PET,PC,PP,HIPS,APET,PETG,PS, etc.

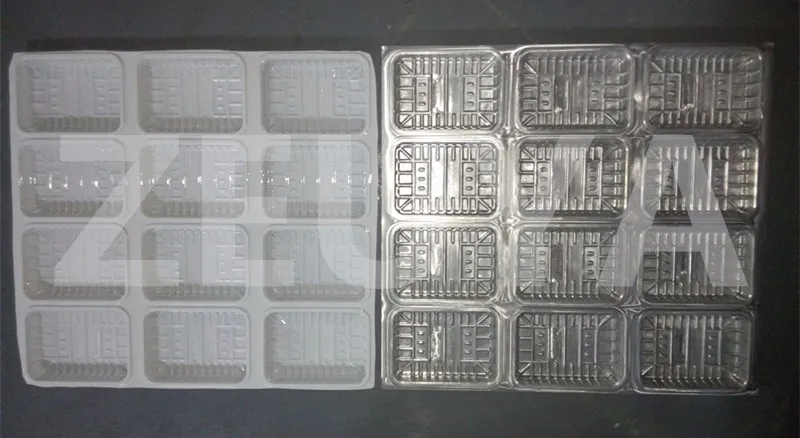

2. Plastic forming machine for vacuum packing can be used to produce snack box, fruit tray , biscuit box ,toothbrush ,battery , gift, little hardware ,stationary, decorative article , plastic container, pill,etc.

Packing & Delivery

Packing:

Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.

Delivery:

For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.

The price show on our website just the machine EXW price, please contact us before you place order.

Our Company

Shenzhen Zeuya Industry Co., Ltd. has been committed to R&D, production and sales of the plastic welding field ever since its establishment in 1995.

We are professional designer and manufacturer of High Frequency Welding Machine, Ultrasonic Plastic Welding Machine, Blister Forming Machine, Tube Sealing and Filling Machine and other Packing Machine with over 10 years.

We welcome both new and regular customers at home and abroad to visit us and cooperate with us to achieve mutual profits and create a better future. We are convinced that your partnership with us can help your business scale a new high.

Our Certificates

Since its inception, ZEUYA INDUSTRY has been devoted to optimization and integration of developing, producing, sealing, and application of technology of ultrasonic machinery. After almost twenty years of unremitting efforts, ZEUYA INDUSTRY with high quality products, excellent technical support and perfect after-sales service has established a good reputation among the customers, and also gains a number of provincial and national honnors.

FAQ

Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 1-3 days if the goods are not in stock, it is according to quantity.

Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).

Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.


Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.


Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .


Pre-sale services:

1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.

Sale of services:

1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.


2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.

After-sales service:

1. Where to buy our products for 1 years warranty and life long maintenance.


2. 24-hours telephone service.


3. A large stock of components and parts, easily-worn parts.
